Electrochemical Energy Engineering

Introduction to Electrochemical Energy Engineering

Energy has always been a fundamental driver of human civilization and technological progress. Over the last century, the widespread availability of low-cost fossil fuels has enabled rapid industrial development, transportation expansion, and modern living standards. However, declining fossil fuel reserves, increasing global energy demand, environmental pollution, and climate change concerns have created an urgent need for cleaner and more sustainable energy technologies.

Electrochemical energy engineering has emerged as a critical scientific and industrial field focused on developing advanced energy conversion and storage systems that reduce dependence on fossil fuel combustion. Unlike conventional combustion-based energy systems, electrochemical technologies convert chemical energy directly into electricity through controlled electrochemical reactions. This direct conversion process provides significantly higher energy efficiency, lower emissions, improved operational safety, and better environmental sustainability.

Traditional combustion systems rely on oxidation and reduction reactions occurring simultaneously, where electrons are transferred directly between fuel and oxidizing agents to generate heat. That thermal energy is then converted into mechanical energy and finally into electricity. In contrast, electrochemical systems spatially separate oxidation and reduction reactions using electrolytes or ion-exchange membranes. This separation allows electrons to travel through an external circuit, producing electricity directly without intermediate heat conversion stages. As a result, electrochemical devices can achieve higher intrinsic conversion efficiencies while operating under milder temperatures and pressures.

Electrochemical energy engineering is considered a specialized branch of chemical engineering that combines electrochemistry, thermodynamics, transport phenomena, reaction engineering, materials science, and physics to design high-performance energy devices. The discipline evolved from traditional electrochemical engineering fields such as electroplating, corrosion science, and electrosynthesis. Pioneering research conducted by Charles W. Tobias at the University of California, Berkeley established the modern foundation of electrochemical engineering and trained multiple generations of researchers and industry experts. Another major contribution came from John S. Newman through the influential textbook Electrochemical Systems, which remains one of the most important references in the field.

As global energy systems transition toward renewable and low-carbon technologies, electrochemical energy devices are expected to play a central role in future electricity generation, hydrogen production, energy storage, and clean transportation systems.

Modern Electrochemical Energy Devices

Current electrochemical energy systems are primarily based on four major device categories:

• Fuel cells (FCs)
• Electrolyzers (ELs)
• Solar hydrogen generators (SHs)
• Redox flow batteries (FBs)

These technologies form an integrated clean-energy ecosystem capable of supporting renewable electricity production, hydrogen fuel generation, and large-scale energy storage for solar and wind power applications.

Most electrochemical devices share a common multilayer architecture composed of:

• Anode electrode
• Electrolyte or ion-exchange membrane
• Cathode electrode

Each electrode contains electrocatalysts that accelerate oxidation-reduction reactions. Electrodes are typically designed as porous thin-film structures that simultaneously support:

• Electron conduction
• Ion transport
• Mass transfer of reactants and products

The membrane serves several critical functions, including selective ion transport, electrical insulation between electrodes, and separation of fuels and oxidants. The chemical nature of the membrane, whether acidic or alkaline, strongly influences the electrochemical reactions, catalyst selection, operating conditions, and overall system efficiency.

Recent research demonstrates that replacing traditional proton exchange membranes (PEMs) with hydroxide exchange membranes (HEMs) can significantly reduce system cost by enabling the use of nonprecious metal catalysts instead of expensive platinum-group metals. This innovation is considered one of the most promising pathways toward affordable and commercially scalable electrochemical energy technologies.

Fuel Cells and Electrochemical Power Generation

Fundamentals of Fuel Cells

Fuel cells are electrochemical devices that convert chemical energy directly into electricity through reactions between fuels and oxidizing agents. Compared with combustion engines, fuel cells offer:

• Higher energy efficiency
• Lower greenhouse gas emissions
• Reduced air pollution
• Flexible system design
• Quiet operation
• Improved scalability

A typical hydrogen fuel cell generates electricity through hydrogen oxidation at the anode and oxygen reduction at the cathode.

The main electrochemical reactions in acidic fuel cells are:

Hydrogen Oxidation Reaction (HOR)

2H2→4H++4e−E∘=0 V versus SHE

Oxygen Reduction Reaction (ORR)

O2+4H++4e−→2H2OE∘=1.23 V versus SHE

Hydrogen fuel cells are especially attractive because hydrogen possesses extremely high specific energy and can potentially be produced using renewable electricity or solar-driven water splitting.

Proton Exchange Membrane Fuel Cells (PEMFCs)

The development of solid polymer electrolytes revolutionized fuel cell technology. Proton exchange membranes replaced corrosive liquid acid electrolytes and enabled compact, leak-free, and safer fuel cell systems.

The introduction of Nafion by DuPont represented a major technological breakthrough. Nafion membranes offer:

• High proton conductivity
• Excellent chemical stability
• Thermal durability
• Strong mechanical performance

PEM fuel cells achieve very high power density and long operational lifetime. However, acidic environments require expensive precious metal catalysts such as platinum for both hydrogen oxidation and oxygen reduction reactions. This heavy reliance on platinum remains one of the largest barriers to large-scale commercialization.

Hydroxide Exchange Membrane Fuel Cells (HEMFCs)

Advantages of Alkaline Electrochemical Systems

Hydroxide exchange membrane fuel cells operate in alkaline environments rather than acidic conditions. This change fundamentally improves catalyst compatibility and enables the use of low-cost nonprecious metals such as:

• Nickel (Ni)
• Silver (Ag)
• Cobalt (Co)
• Iron-based catalysts

The electrochemical reactions in alkaline fuel cells are:

Alkaline HOR Reaction

2H2+4OH−→4H2O+4e−E∘=−0.83 V versus SHE

Alkaline ORR Reaction

O2+2H2O+4e−→4OH−E∘=0.40 V versus SHE

HEM fuel cells provide several major advantages:

• Lower catalyst cost
• Improved catalyst durability
• Reduced fuel crossover
• Better compatibility with alcohol fuels
• Enhanced electrode flexibility
• Potential for large-scale commercialization

Advanced HEM systems have already demonstrated power densities approaching state-of-the-art PEM fuel cells while significantly lowering material costs.

Hydroxide Exchange Membranes and Ionomers

Hydroxide exchange membranes are produced using cation-functionalized polymers containing positively charged groups that transport hydroxide ions. Common cationic groups include:

• Quaternary ammonium
• Phosphonium
• Sulfonium
• Guanidinium
• Imidazolium

Hydroxide exchange ionomers (HEIs) are incorporated within catalyst layers to create efficient triple-phase boundaries where:

• Catalysts
• Reactant gases
• Ion-conducting pathways

interact simultaneously.

Key membrane design goals include:

• High hydroxide conductivity
• Chemical stability
• Mechanical strength
• Thermal resistance
• Low fuel permeability

Current research focuses heavily on improving membrane durability under alkaline and oxidative operating conditions.

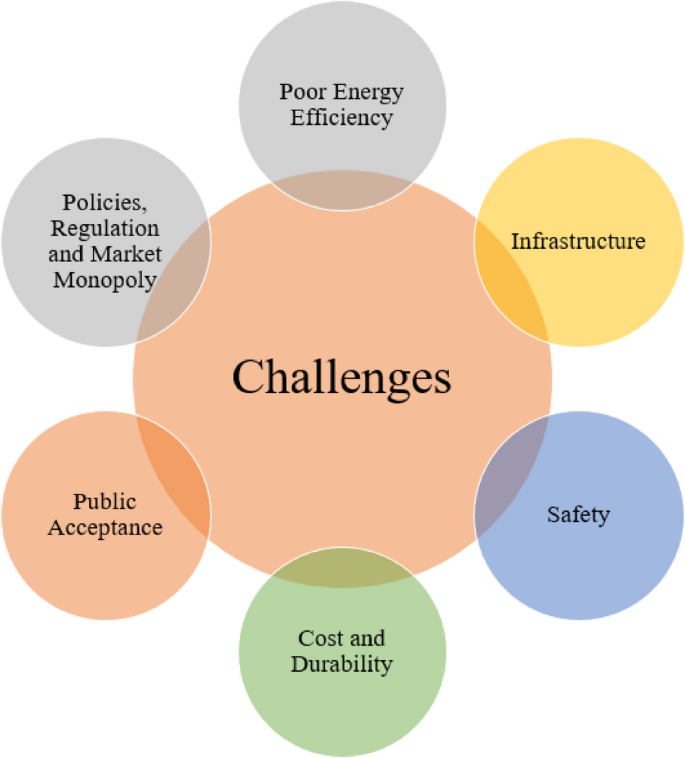

Challenges in HEM Fuel Cell Development

Despite major progress, several technical challenges still limit commercialization:

Membrane Durability

Long operational lifetime remains difficult due to:

• Hydroxide-induced polymer degradation
• Oxidative attack on ionomers
• High-temperature instability

Commercial transportation applications may require operational lifetimes exceeding 5,000 hours.

Nonprecious Metal Catalyst Development

Although nickel and silver catalysts show strong potential, researchers continue working to improve:

• Hydrogen oxidation kinetics
• Oxygen reduction efficiency
• Catalyst stability
• Electrode performance at high current density

Water Management

Water transport in HEM fuel cells differs fundamentally from PEM systems. Efficient electrode structures must balance:

• Hydration
• Gas diffusion
• Ionic conductivity
• Flooding prevention

Optimized membrane electrode assemblies (MEAs) are essential for high-performance operation.

Solar Hydrogen Generators and Photoelectrochemical Water Splitting

Solar hydrogen generators use sunlight to split water into hydrogen and oxygen through photoelectrochemical (PEC) reactions. These systems integrate:

• Semiconductor light absorbers
• Electrocatalysts
• Ion-exchange membranes

PEC cells convert solar energy directly into chemical energy stored in hydrogen fuel.

The overall water-splitting reaction is:

2H2O→2H2+O2​

Efficient PEC systems require:

• Strong sunlight absorption
• Proper semiconductor bandgap alignment
• Fast hydrogen evolution reaction (HER)
• Efficient oxygen evolution reaction (OER)
• Stable catalytic interfaces

HEM-Based Photoelectrochemical Cells

HEM-based PEC cells operate under alkaline conditions, enabling the use of inexpensive nonprecious catalysts for water splitting reactions.

Photoanode Reaction

4OH−→2H2O+O2+4e−E∘=0.40 V versus SHE

Photocathode Reaction

4H2O+4e−→2H2+4OH−E∘=−0.83 V versus SHE

Advantages of HEM-based PEC systems include:

• Lower material cost
• Reduced dependence on platinum-group metals
• Improved alkaline catalyst stability
• Better scalability for solar hydrogen production

Future development priorities include:

• Stable alkaline semiconductors
• UV-resistant membranes
• High-performance nonprecious catalysts
• Efficient ion and electron transport

Redox Flow Batteries for Renewable Energy Storage

Flow Battery Technology

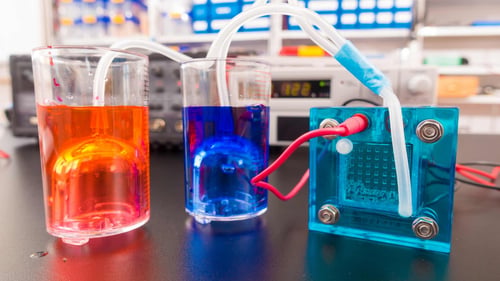

Flow batteries are rechargeable electrochemical systems designed for large-scale energy storage applications. Unlike conventional batteries, flow batteries store energy in external liquid electrolytes instead of solid electrodes.

Major advantages include:

• Independent scaling of power and energy capacity
• Long cycle life
• Improved durability
• Enhanced safety
• Flexible system design

Flow batteries are especially suitable for storing intermittent renewable electricity generated by solar and wind systems.

All-Vanadium Flow Batteries

One of the most successful flow battery technologies is the all-vanadium flow battery system, which uses vanadium ions in different oxidation states for both half-cell reactions.

Negative Electrode Reaction

V3++e−↔V2+E∘=−0.26 V versus SHE

Positive Electrode Reaction

VO2+↔VO22++e−E∘=0.99 V versus SHE

These systems provide:

• High durability
• Stable cycling
• Fast charge-discharge response
• Large-scale grid storage capability

However, their relatively low cell voltage limits energy density.

Double-Membrane Flow Batteries (DMFBs)

Advanced double-membrane flow battery designs use both cation-exchange and anion-exchange membranes to combine highly positive and highly negative redox couples in a single system.

A notable example is the zinc-cerium flow battery.

Zinc Electrode Reaction

Zn(OH)42−+2e−↔Zn+4OH−E∘=−1.22 V versus SHE

Cerium Electrode Reaction

2Ce3+↔2Ce4++2e−E∘=1.74 V versus SHE

DMFB systems offer:

• Extremely high cell voltage
• Higher energy density
• Reduced ion crossover
• Longer operational lifetime
• Improved efficiency

These systems represent a promising next-generation solution for utility-scale renewable energy storage.

Future Perspectives of Electrochemical Energy Engineering

Electrochemical energy technologies are expected to become a major foundation of future sustainable energy infrastructure. Fuel cells, electrolyzers, solar hydrogen generators, and advanced flow batteries provide efficient alternatives to combustion-based energy systems while supporting renewable electricity integration and carbon-neutral energy production.

One of the most important advances in modern electrochemical engineering is the transition from acidic polymer electrolytes to alkaline hydroxide exchange membranes. This shift enables the use of low-cost, abundant, nonprecious materials while maintaining high electrochemical performance.

Future research priorities include:

• Development of durable membranes and ionomers
• Advanced nonprecious electrocatalysts
• High-efficiency semiconductor materials
• Scalable manufacturing processes
• Improved system integration
• Large-scale renewable energy storage technologies

As electrochemical energy engineering continues to evolve, it is expected to play a leading role in achieving global clean-energy goals and supporting the transition toward a low-carbon economy.
